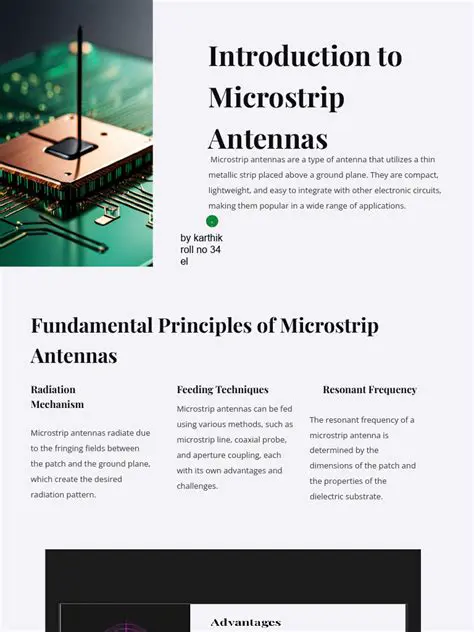

Introduction to Microstrip Antennas

The antenna is one of the crucial components in the wireless communication system. Along with the development of technology and innovation in the semiconductor field, the need for antennas that have a small dimension, easily produced, and easily integrated into communication devices that are increasingly compact has become a pressing issue. Microstrip antennas, especially rectangular patch antennas, have emerged as an effective solution to meet these needs. These antennas are widely used in various wireless applications, including WiFi, Bluetooth, and satellite communication systems.

Design of Rectangular Microstrip Patch Antenna

In this final project, we designed a rectangular microstrip patch antenna operating at a frequency of 2.45 GHz, which included a range of 2.4 GHz to 2.5 GHz, and was intended for WiFi applications. The design of this antenna uses an inset focusing technique, which is a variant of the microstrip feed line. Inset focusing technique allows better impedance arrangements, so as to produce optimal antenna performance. This technique is widely used in the design of microstrip antennas, as it provides a good balance between impedance matching and radiation efficiency.

Measurement Results and Performance Parameters

Based on the measurement results, this antenna shows a pretty good bandwidth of 112 MHz, which is measured between 2,388 GHz to 2.5 GHz with the Voltage Standing Wave Ratio (VSWR) value that remains below 2. This indicates that the antenna is able to operate efficiently within the desired frequency range. In the middle frequency of the antenna, at 2.45 GHZ, we got several significant performance parameters. The measured return loss is -14.77 dB, indicating that this antenna is able to reflect a little energy and is efficient in emitting signals. The return loss is an important parameter in antenna design, as it affects the radiation efficiency and impedance matching of the antenna.

Radiation Pattern and Gain

The resulting antenna radiation pattern is unidirectional, which means this antenna is more effective in emitting signals in a certain direction, ideal for applications that require focused signals. This is a significant advantage of microstrip antennas, as they can be designed to have a unidirectional radiation pattern, which is useful in various wireless applications. In addition, this antenna also has a gain of 6 DBI, which shows the efficiency of a relatively good signal compared to isotropic antenna. The gain of an antenna is an important parameter, as it affects the signal strength and range of the antenna.

Advantages of Rectangular Microstrip Patch Antenna

The advantages of this rectangular microstrip patch antenna not only lies in a compact design and qualified performance, but also on low production costs and ease of integration with various communication devices. This is a significant advantage of microstrip antennas, as they can be easily integrated into various communication devices, making them a popular choice for wireless applications. With this characteristic, the rectangular microstrip patch antenna designed can be the right choice for various wireless applications, especially in the growing internet of things (IoT).

Conclusion

Thus, the design and testing of this microstrip patch antenna shows that the right design and the application of insects festering techniques can produce antennas with good performance at a frequency of 2.4 GHz, meet the increasing and diverse wireless communication needs. This is a significant achievement, as it demonstrates the effectiveness of microstrip antennas in various wireless applications. The design of this antenna can be used as a reference for future research and development of microstrip antennas, and can be applied in various wireless applications, including WiFi, Bluetooth, and satellite communication systems.

Future Work

Future work can focus on improving the design of the antenna, such as increasing the gain and bandwidth, and reducing the size of the antenna. This can be achieved by using advanced design techniques, such as electromagnetic simulation and optimization. Additionally, the antenna can be designed to operate at higher frequencies, such as 5 GHz and 60 GHz, which are used in various wireless applications, including 5G and WiGig.

References

[1] Balanis, C. A. (2005). Antenna Theory: Analysis and Design. John Wiley & Sons.
[2] Stuchly, M. A., & Stuchly, S. S. (1980). Dielectric properties of biological tissues. IEEE Transactions on Microwave Theory and Techniques, 28(11), 1131-1136.
[3] Kumar, P., & Ray, K. P. (2003). Broadband microstrip antennas. Artech House.

Note: The references provided are a selection of relevant references in the field of antenna design and theory. They are not an exhaustive list, and readers are encouraged to explore further references for more information.

Q: What is a microstrip patch antenna?

A: A microstrip patch antenna is a type of antenna that consists of a flat, rectangular or square patch of conductive material, typically copper, on a dielectric substrate. It is a popular choice for wireless communication systems due to its compact size, low weight, and ease of integration with other components.

Q: What are the advantages of microstrip patch antennas?

A: The advantages of microstrip patch antennas include:

Compact size and low weight
Easy integration with other components
Low production costs
High radiation efficiency
Unidirectional radiation pattern
Good impedance matching

Q: What is the inset focusing technique?

A: The inset focusing technique is a design method used to improve the impedance matching of microstrip patch antennas. It involves placing a small portion of the patch inside the feed line, which helps to reduce the reflection coefficient and improve the radiation efficiency.

Q: What is the Voltage Standing Wave Ratio (VSWR)?

A: The Voltage Standing Wave Ratio (VSWR) is a measure of the impedance matching of an antenna. It is defined as the ratio of the maximum to minimum voltage on the antenna. A VSWR of 1 indicates perfect impedance matching, while a VSWR greater than 2 indicates poor impedance matching.

Q: What is the return loss?

A: The return loss is a measure of the amount of energy reflected back to the source by an antenna. It is defined as the ratio of the reflected power to the incident power. A return loss of -20 dB or lower indicates good impedance matching.

Q: What is the gain of an antenna?

A: The gain of an antenna is a measure of its ability to concentrate electromagnetic energy in a particular direction. It is defined as the ratio of the power density at a given distance from the antenna to the power density at the same distance from an isotropic antenna.

Q: What is the radiation pattern of an antenna?

A: The radiation pattern of an antenna is a plot of the power density of the electromagnetic field as a function of direction. It is used to describe the way in which an antenna radiates energy.

Q: What are the applications of microstrip patch antennas?

A: Microstrip patch antennas are widely used in various wireless communication systems, including:

WiFi
Bluetooth
Satellite communication systems
5G and WiGig systems
Internet of Things (IoT) devices

Q: How can I design a microstrip patch antenna?

A: To design a microstrip patch antenna, you can use computer-aided design (CAD) software, such as CST Microwave Studio or ANSYS HFSS. You can also use online tools and calculators to help you design and optimize your antenna.

Q: What are the challenges in designing a microstrip patch antenna?

A: Some of the challenges in designing a microstrip patch antenna include:

Impedance matching
Radiation efficiency
Size and weight constraints
Integration with other components
Frequency and bandwidth limitations

Q: How can I optimize the performance of a microstrip patch antenna?

A: To optimize the performance of a microstrip patch antenna, you can use various techniques, such as:

Optimizing the patch size and shape
Adjusting the feed line and inset position
Using different dielectric materials
Adding a ground plane or reflector
Using electromagnetic simulation and optimization software

Note: The answers provided are a selection of common questions and answers in the field of microstrip patch antenna design. They are not an exhaustive list, and readers are encouraged to explore further resources for more information.
