$Mathematical Representation of Complex Refractive Indices$

Introduction

The Fresnel formula is a fundamental concept in optics that describes the reflection and transmission of electromagnetic waves at the interface between two media. The formula is widely used in various applications, including multilayer coatings, optical fibers, and solar cells. However, when dealing with complex refractive indices, the Fresnel formula becomes more complex, and its application requires a deep understanding of complex numbers and their properties. In this article, we will delve into the world of complex refractive indices in the Fresnel formula and explore the software tools available for calculating reflection coefficients.

What are Complex Refractive Indices?

In the context of the Fresnel formula, refractive indices are complex numbers that describe the interaction between electromagnetic waves and the medium they are propagating through. A complex refractive index is represented by the symbol n, which is a combination of a real part (n_r) and an imaginary part (n_i). The real part represents the refractive index of the medium, while the imaginary part represents the absorption or dissipation of energy by the medium.

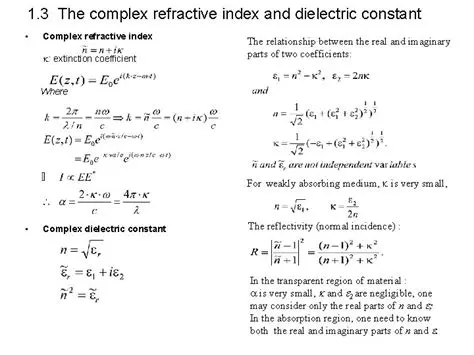

Mathematical Representation of Complex Refractive Indices

The complex refractive index n can be represented mathematically as:

n = n_r + jn_i

where j is the imaginary unit, which is defined as the square root of -1. The real part n_r is the refractive index of the medium, while the imaginary part n_i represents the absorption or dissipation of energy by the medium.

Fresnel Formula with Complex Refractive Indices

The Fresnel formula for reflection and transmission coefficients is given by:

r = (n_1 - n_2) / (n_1 + n_2)

where n_1 and n_2 are the complex refractive indices of the two media. When n_1 and n_2 are complex numbers, the Fresnel formula becomes:

r = ((n_r1 - n_r2) + j(n_i1 - n_i2)) / ((n_r1 + n_r2) + j(n_i1 + n_i2))

Software Tools for Calculating Reflection Coefficients

Several software tools are available for calculating reflection coefficients when complex refractive indices are involved. Some of the popular tools include:

Matlab: Matlab is a high-level programming language and environment that is widely used in various fields, including optics and electromagnetics. Matlab provides a built-in function fresnel for calculating reflection and transmission coefficients.
Python: Python is a popular programming language that is widely used in various fields, including optics and electromagnetics. Python provides several libraries, including numpy and scipy, that can be used for calculating reflection coefficients.
COMSOL: COMSOL is a commercial software tool that is widely used in various fields, including optics and electromagnetics. COMSOL provides a built-in module for calculating reflection and transmission coefficients.
Lumerical: Lumerical is a commercial software tool that is widely used in various fields, including optics and electromagnetics. Lumerical provides a built-in module for calculating reflection and transmission coefficients.

Example Calculations

Let's consider an example calculation of reflection coefficients using Matlab. Suppose we have two media with complex refractive indices n_1 = 1.5 + j0.2 and n_2 = 1.2 - j0.1. We can use the fresnel function in Matlab to calculate the reflection coefficient r:

n1 = 1.5 + 1j*0.2;
n2 = 1.2 - 1j*0.1;
r = (n1 - n2) / (n1 + n2);

Conclusion

In conclusion, complex refractive indices play a crucial role in the Fresnel formula, and their application requires a deep understanding of complex numbers and their properties. Several software tools are available for calculating reflection coefficients when complex refractive indices are involved. By using these tools, we can accurately calculate reflection coefficients and design optical systems that meet specific requirements.

Future Work

Future work in this area may include:

Development of new software tools: Developing new software tools that can accurately calculate reflection coefficients when complex refractive indices are involved.
Experimental verification: Experimental verification of the calculated reflection coefficients using various optical systems.
Theoretical analysis: Theoretical analysis of the effects of complex refractive indices on the behavior of electromagnetic waves.

References

Hecht, E. (2017). Optics. Pearson Education.
Born, M., & Wolf, E. (1999). Principles of Optics. Cambridge University Press.
Jackson, J. D. (1999). Classical Electrodynamics. John Wiley & Sons.
Frequently Asked Questions (FAQs) about Complex Refractive Indices in Fresnel Formula =====================================================================================

Q: What is the difference between complex refractive indices and real refractive indices?

A: Complex refractive indices are a combination of real and imaginary parts, which describe the interaction between electromagnetic waves and the medium they are propagating through. Real refractive indices, on the other hand, only describe the refractive index of the medium without considering the absorption or dissipation of energy.

Q: How do complex refractive indices affect the behavior of electromagnetic waves?

A: Complex refractive indices can affect the behavior of electromagnetic waves in several ways. They can cause the waves to be absorbed or dissipated, which can lead to a decrease in the intensity of the waves. Additionally, complex refractive indices can cause the waves to be refracted or bent, which can lead to changes in the direction of the waves.

Q: What is the significance of the imaginary part of the complex refractive index?

A: The imaginary part of the complex refractive index represents the absorption or dissipation of energy by the medium. It is a measure of how much energy is lost as the electromagnetic wave propagates through the medium.

Q: How do I calculate the reflection coefficient using complex refractive indices?

A: To calculate the reflection coefficient using complex refractive indices, you can use the Fresnel formula, which is given by:

r = (n_1 - n_2) / (n_1 + n_2)

where n_1 and n_2 are the complex refractive indices of the two media.

Q: What software tools can I use to calculate reflection coefficients with complex refractive indices?

A: Several software tools are available for calculating reflection coefficients with complex refractive indices, including Matlab, Python, COMSOL, and Lumerical.

Q: Can I use the Fresnel formula for complex refractive indices in any situation?

A: No, the Fresnel formula for complex refractive indices is only applicable in certain situations. It is typically used for calculating reflection coefficients in the presence of absorption or dissipation of energy by the medium.

Q: How do I handle complex refractive indices in multilayer coatings?

A: When dealing with complex refractive indices in multilayer coatings, you need to consider the absorption or dissipation of energy by each layer. You can use the Fresnel formula to calculate the reflection coefficient at each interface, taking into account the complex refractive indices of each layer.

Q: Can I use complex refractive indices to describe the behavior of electromagnetic waves in any medium?

A: No, complex refractive indices are typically used to describe the behavior of electromagnetic waves in media that exhibit absorption or dissipation of energy. In media that do not exhibit absorption or dissipation of energy, real refractive indices are sufficient.

Q: How do I determine the complex refractive index of a medium?

A: The complex refractive index of a medium can be determined experimentally using various techniques, such as spectroscopy or ellipsometry. Alternatively, you can use theoretical models to estimate the complex refractive index of a medium.

Q: Can I use complex refractive indices to describe the behavior of electromagnetic waves in the presence of non-linear effects?

A: No, complex refractive indices are typically used to describe the behavior of electromagnetic waves in the presence of linear effects. Non-linear effects require a more complex description, which may involve the use of non-linear optics or other advanced techniques.

Q: How do I handle complex refractive indices in the presence of dispersion?

A: When dealing with complex refractive indices in the presence of dispersion, you need to consider the frequency dependence of the refractive index. You can use the Fresnel formula to calculate the reflection coefficient at each frequency, taking into account the complex refractive indices of each medium.

Q: Can I use complex refractive indices to describe the behavior of electromagnetic waves in the presence of anisotropy?

A: No, complex refractive indices are typically used to describe the behavior of electromagnetic waves in isotropic media. Anisotropic media require a more complex description, which may involve the use of tensor optics or other advanced techniques.
