The Cross Product in 3D Space

Oct 13, 2025 by talynt.org 47 views

Introduction

In mathematics, the cross product is a binary operation on two vectors in a three-dimensional Euclidean space that results in another vector which is perpendicular to the plane containing the two vectors. However, when dealing with 2D vectors, the concept of a cross product is a bit more complex. In this article, we will explore how to calculate the cross product of two 2D vectors and discuss the implications of this operation.

What is a 2D Vector?

A 2D vector is a mathematical object that has both magnitude (length) and direction. It can be represented as an ordered pair of numbers, (x, y), where x is the horizontal component and y is the vertical component. For example, the 2D vector (3, 4) has a magnitude of √(3^2 + 4^2) = 5 and a direction of 53.13° (measured counterclockwise from the positive x-axis).

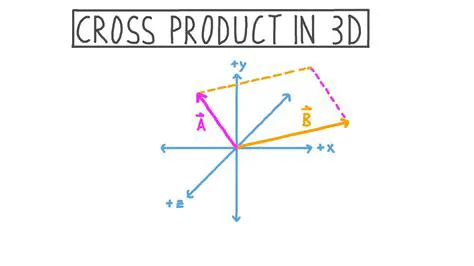

The Cross Product in 3D Space

Before we dive into the 2D cross product, let's briefly review the 3D cross product. The cross product of two vectors a = (a1, a2, a3) and b = (b1, b2, b3) is defined as:

c = a × b = (a2b3 - a3b2, a3b1 - a1b3, a1b2 - a2b1)

The resulting vector c is perpendicular to the plane containing the two vectors a and b. The magnitude of the cross product is given by:

|c| = |a| |b| sin(θ)

where θ is the angle between the two vectors.

Extending the Cross Product to 2D Space

In 2D space, we can extend the concept of the cross product by considering the vectors as 2D vectors with a third component of zero. This means that the 2D vector (x, y) can be represented as (x, y, 0). Using this representation, we can calculate the cross product of two 2D vectors as follows:

c = a × b = (a2b3 - a3b2, a3b1 - a1b3, a1b2 - a2b1)

Since the third component of both vectors is zero, the cross product simplifies to:

c = (0, 0, x1y2 - x2y1)

The resulting vector c is perpendicular to the plane containing the two vectors a and b. However, since we are working in 2D space, the resulting vector c is actually a scalar value, not a vector.

Calculating the Cross Product of Two 2D Vectors

To calculate the cross product of two 2D vectors, we can use the following formula:

c = a × b = x1y2 - x2y1

where a = (x1, y1) and b = (x2, y2). This formula is derived from the 3D cross product formula by setting the third component of both vectors to zero.

Example: Calculating the Cross Product of Two 2D Vectors

Let's consider two 2D vectors a = (3, 4) and b = (2, 5). To calculate the cross product of these vectors, we can use the formula:

c = a × b = x1y2 - x2y1 = (3)(5) - (2)(4) = 15 - 8 = 7

The resulting scalar value is 7.

Implications of the Cross Product in 2D Space

The cross product of two 2D vectors is a scalar value that represents the area of the parallelogram formed by the two vectors. This is because the cross product is perpendicular to the plane containing the two vectors, and the magnitude of the cross product is proportional to the area of the parallelogram.

Conclusion

In this article, we have explored how to calculate the cross product of two 2D vectors. We have seen that the cross product is a scalar value that represents the area of the parallelogram formed by the two vectors. While the concept of a cross product is more complex in 2D space than in 3D space, it is still a useful tool for understanding the relationships between vectors in 2D space.

Applications of the Cross Product in 2D Space

The cross product of two 2D vectors has several applications in mathematics and computer science. Some examples include:

Area calculation: The cross product can be used to calculate the area of a parallelogram formed by two vectors.
Vector rotation: The cross product can be used to rotate a vector by a certain angle.
Vector scaling: The cross product can be used to scale a vector by a certain factor.

Code Implementation

Here is an example of how to implement the cross product of two 2D vectors in Python:

def cross_product(a, b):
    """
    Calculate the cross product of two 2D vectors.
Args:
    a (tuple): The first 2D vector.
    b (tuple): The second 2D vector.

Returns:
    float: The cross product of the two vectors.
&quot;&quot;&quot;
x1, y1 = a
x2, y2 = b
return x1 * y2 - x2 * y1

a = (3, 4)
b = (2, 5)
print(cross_product(a, b))  # Output: 7

Conclusion

Introduction

In our previous article, we explored how to calculate the cross product of two 2D vectors. In this article, we will answer some frequently asked questions about the cross product of 2D vectors.

Q: What is the cross product of two 2D vectors?

A: The cross product of two 2D vectors is a scalar value that represents the area of the parallelogram formed by the two vectors.

Q: How do I calculate the cross product of two 2D vectors?

A: To calculate the cross product of two 2D vectors, you can use the following formula:

c = a × b = x1y2 - x2y1

where a = (x1, y1) and b = (x2, y2).

Q: What is the unit of the cross product of two 2D vectors?

A: The unit of the cross product of two 2D vectors is typically measured in square units (e.g., square meters, square feet).

Q: Can I use the cross product of two 2D vectors to find the area of a triangle?

A: Yes, you can use the cross product of two 2D vectors to find the area of a triangle. The area of a triangle is half the area of the parallelogram formed by the two vectors.

Q: How do I use the cross product of two 2D vectors to find the area of a parallelogram?

A: To find the area of a parallelogram using the cross product of two 2D vectors, you can simply take the absolute value of the cross product.

Q: Can I use the cross product of two 2D vectors to find the length of a vector?

A: No, you cannot use the cross product of two 2D vectors to find the length of a vector. The cross product of two 2D vectors is a scalar value that represents the area of the parallelogram formed by the two vectors, not the length of a vector.

Q: How do I use the cross product of two 2D vectors to find the angle between two vectors?

A: To find the angle between two vectors using the cross product of two 2D vectors, you can use the following formula:

cos(θ) = (a · b) / (|a| |b|)

where θ is the angle between the two vectors, a and b are the two vectors, and |a| and |b| are the magnitudes of the two vectors.

Q: Can I use the cross product of two 2D vectors to find the dot product of two vectors?

A: Yes, you can use the cross product of two 2D vectors to find the dot product of two vectors. The dot product of two vectors is related to the cross product of the two vectors by the following formula:

a · b = |a| |b| cos(θ)

where θ is the angle between the two vectors.

Q: How do I use the cross product of two 2D vectors in computer graphics?

A: The cross product of two 2D vectors is commonly used in computer graphics to perform various tasks such as:

Vector rotation: The cross product can be used to rotate a vector by a certain angle.
Vector scaling: The cross product can be used to scale a vector by a certain factor.
Area calculation: The cross product can be used to calculate the area of a parallelogram formed by two vectors.

Q: Can I use the cross product of two 2D vectors in game development?

A: Yes, you can use the cross product of two 2D vectors in game development to perform various tasks such as:

Collision detection: The cross product can be used to detect collisions between two objects.
Vector rotation: The cross product can be used to rotate a vector by a certain angle.
Vector scaling: The cross product can be used to scale a vector by a certain factor.

Conclusion

In conclusion, the cross product of two 2D vectors is a scalar value that represents the area of the parallelogram formed by the two vectors. It is a useful tool for understanding the relationships between vectors in 2D space and has various applications in mathematics, computer science, and game development.
